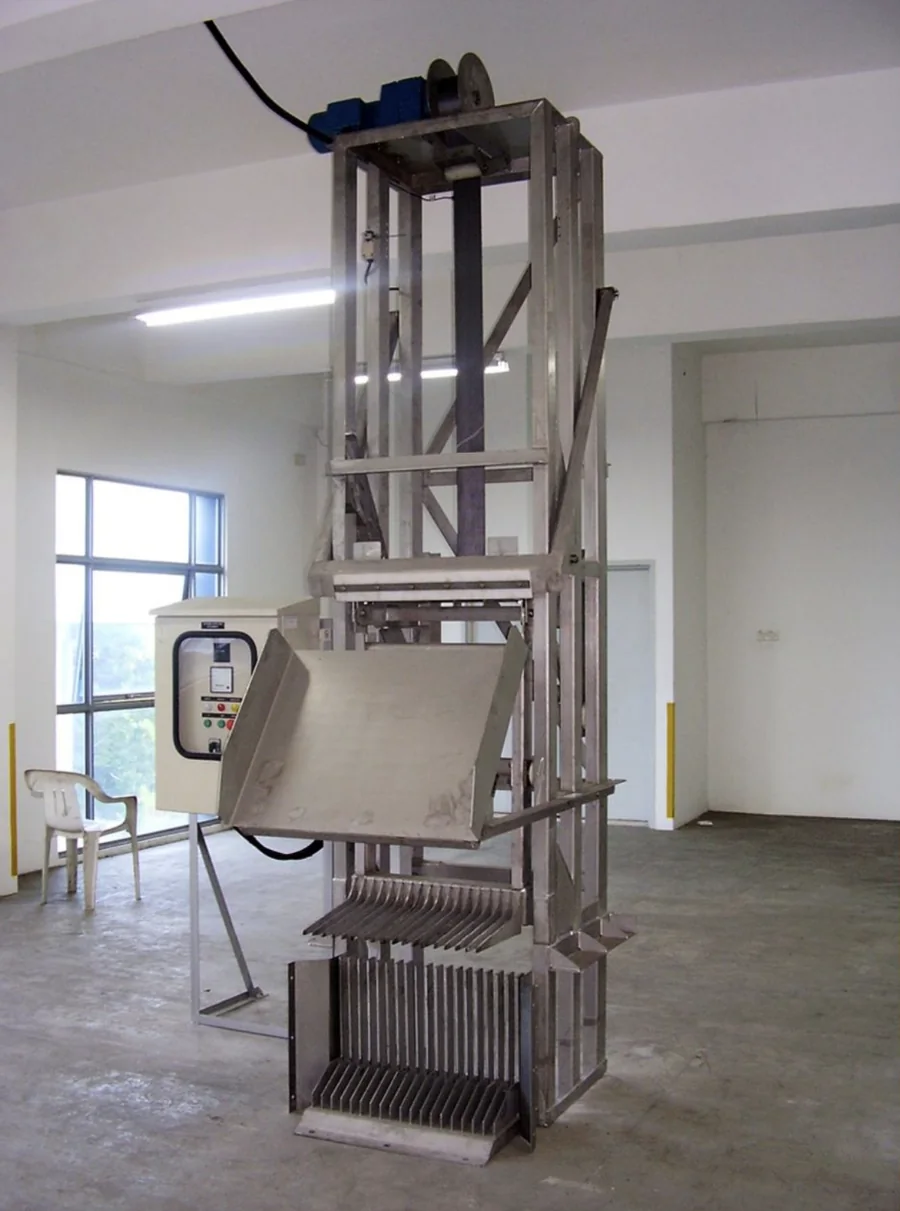

Back-rake belt screen
BRB series. A polyester lifting belt drives the rake; timer and float switch keep it clean automatically. Can sit entirely above the operating floor for safety, looks and odour control.
Solutions
Machines that hold, lift, screen and move.
Every product here is designed by experienced engineers, built from modular standard components and tailored to the site it will serve — then installed and maintained by the same team.
01 · Obermeyer spillway gates
Innovative, reliable, automated water management.
A row of steel gate panels supported on their downstream side by inflatable air bladders. Controlling bladder pressure sets the upstream water level — precisely, and anywhere between fully lowered and fully raised.
- Infinitely adjustableAnywhere from fully lowered to fully raised — set by the balance of hydraulic force and bladder pressure.
- Uniform flowEven distribution across the full length of the spillway; adaptable to any side slope.
- No intermediate piersUnlimited spans, with load spread evenly on the foundation — no point loads, no damaging vibration.
- Modular installationLight components, faster installation and simple, effective leak repair.
- No hydraulic oilPneumatic operation — nothing toxic to leak into the river.
- Debris passes overA thin profile passes floodwater, debris and sediment; the steel panel shields the bladder.
Applications
Water storage & productionHydroelectricRecreationNavigationFlow controlConstant-flow deviceFlood mitigationTidal gatesIrrigation controlSediment & debris controlWater diversionBasement car-park flood barriers
The gate register
44 installations in ASEAN since 2006 · 16 gates operating over 10 years
| Year | Site | Region | Height (m) | Crest (m) | Duty |
|---|---|---|---|---|---|
| 2006 | Babagon Dam77 m + 31.5 m crests | Sabah, Malaysia | 2.5 | 108.5 | Water storage |
| 2007 | Tamu Darat | Sabah, Malaysia | 1 | 12 | Upstream level management |
| 2009 | Sungai Kinta | Perak, Malaysia | 2 | 30 | Beautification & recreation |
| 2014 | Sungai Langat | Selangor, Malaysia | 1.6 | 25 | Flood control & river regulation |
| 2015 | Sungai Tinggi | Selangor, Malaysia | 2.8 | 48 | Upstream river level management |
| 2017 | Tirtonadi, Solo | Central Java, Indonesia | 3.08 | 60 | River beautification & flood control |
| 2018 | Klong Yai Dam3-zone gate | Thailand | 1.05 | 93 | Water storage improvement |
| 2018 | Semarang | Central Java, Indonesia | 2.5 | 152 | Upstream water level management |
| 2019 | Jambalang | Indonesia | 3 | 40 | Spillway gate |
| 2021 | Kali Blorong | Central Java, Indonesia | 2.5 | 137.4 | Upstream water level management |
| 2023 | Sepaku | East Kalimantan, Indonesia | 1.5 | 108 | Spillway gate |
| 2024 | Sungai Selangor | Selangor, Malaysia | 3.5 | 48 | Upstream water level management |
| — | Bunus Flood Mitigation — Boyan | Kuala Lumpur, Malaysia | 4.5 | 5 | Flood mitigation (lake retention) |
| — | Bunus — Ayer Panas & Sri Rampai3 gates | Kuala Lumpur, Malaysia | 3.3 | 5 | Flood mitigation |
| — | Sungai Bilut | Pahang, Malaysia | 1.5 | 15 | Upstream water level management |
| — | Sungai Gapoi | Malaysia | 1.5 | 10 | Upstream water level management |
| — | Sungai Sering | Malaysia | 1.2 | 8 | Upstream water level management |
Source: Sam McCoy × Obermeyer Hydro briefing, October 2024. Undated rows are listed in that briefing without a year.
02 · Archimedean screw pumps
Efficient water lifting with spiral precision.
Screw pumps handle challenging liquids — fibrous, viscous, full of solids — with exceptional performance and minimal upkeep. Proven in agriculture, drainage and wastewater treatment.
- No collection sumpDirect lifting with minimal inlet head.
- Gentle on biological flocPreserves delicate sludge structure for treatment.
- Simple and extremely durableA straightforward, robust way to handle fluids.
- Long life, easy maintenanceFewer moving parts, less frequent servicing.
Municipal sewerage plantsPumping stationsHydropower plantsPolder drainage

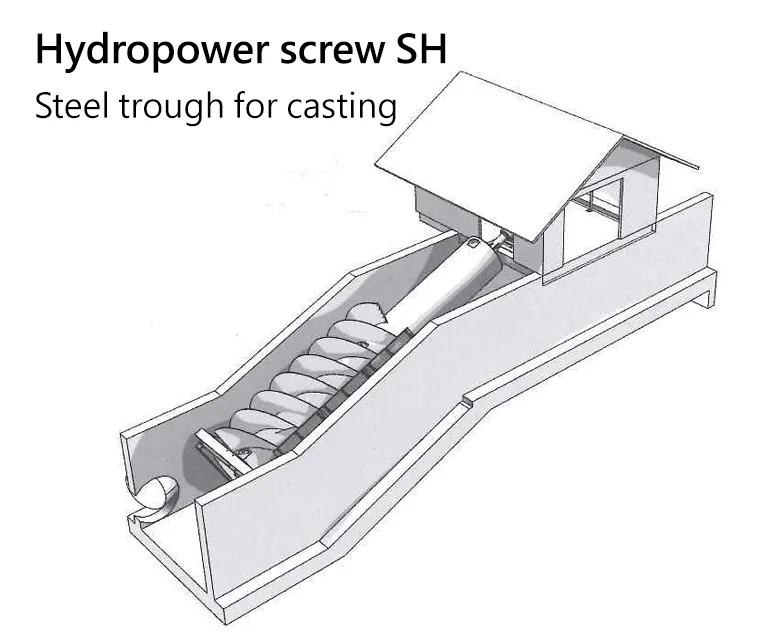

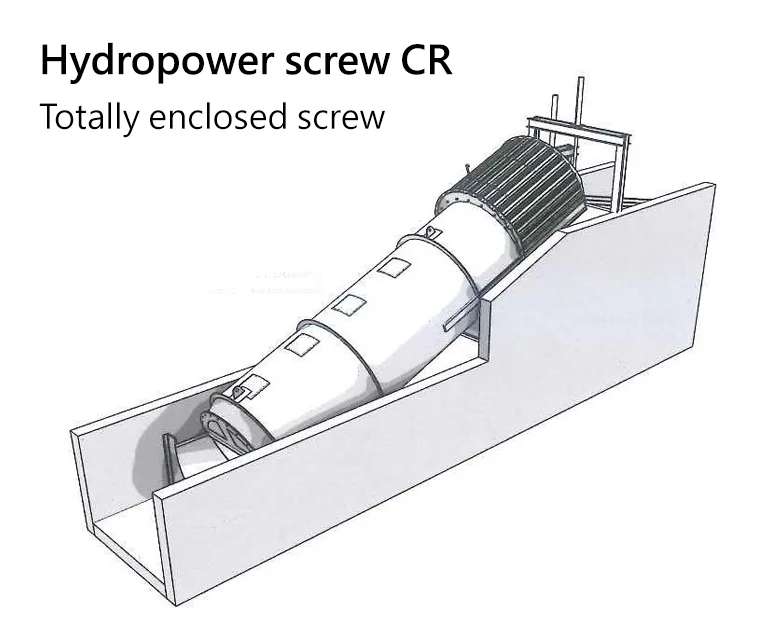

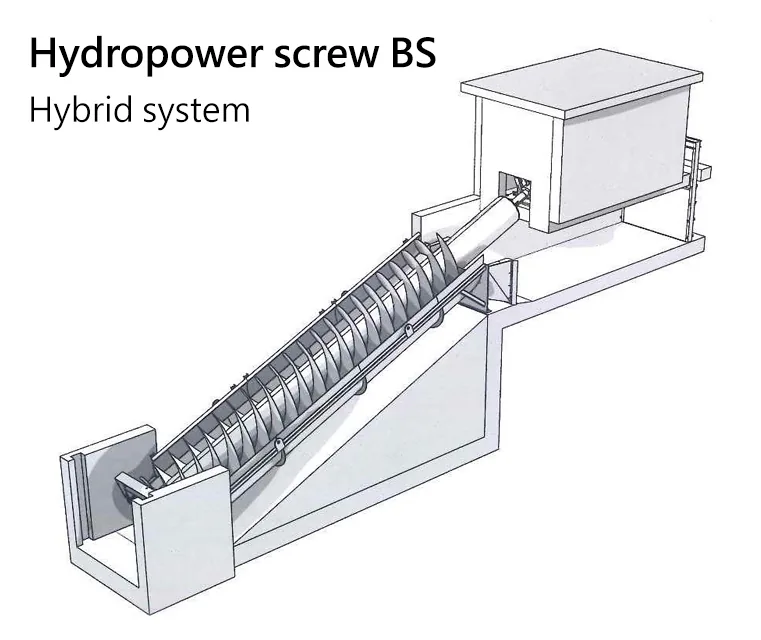

Hydropower screws
The same geometry, run in reverse to generate power
03 · Screening systems
Catch it before it reaches the pumps.
Mechanical screens remove solids and debris from water and wastewater streams before further treatment — protecting valves and gates, and keeping scum off settling and aeration tanks.

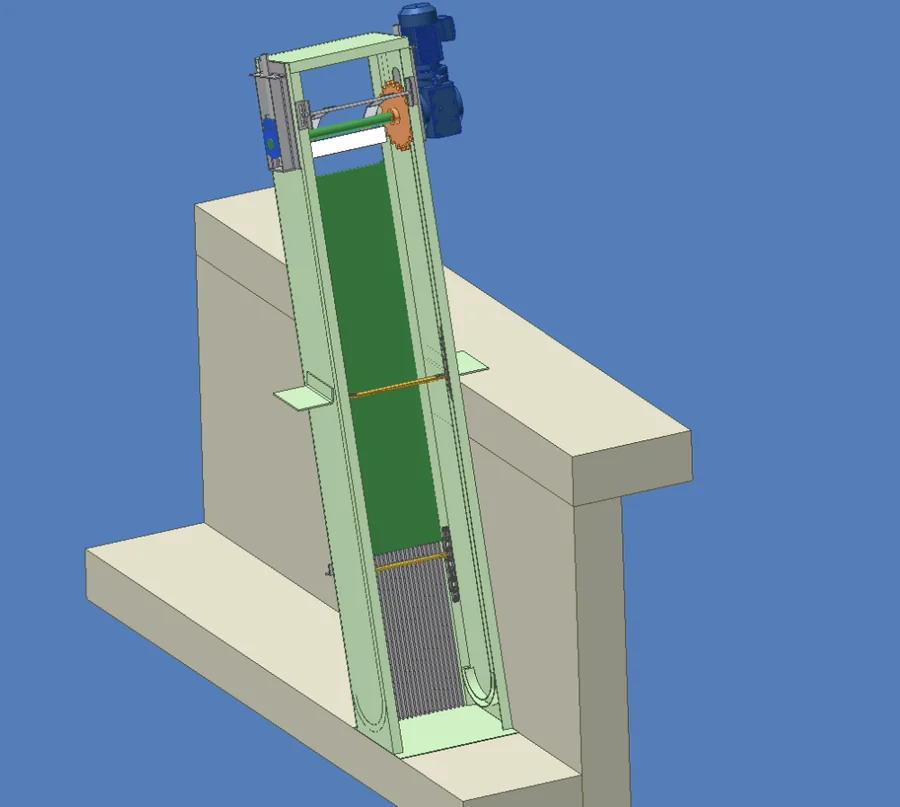

Chain-rake screen
Continuous chain-driven rakes for steady debris loads in deep channels.

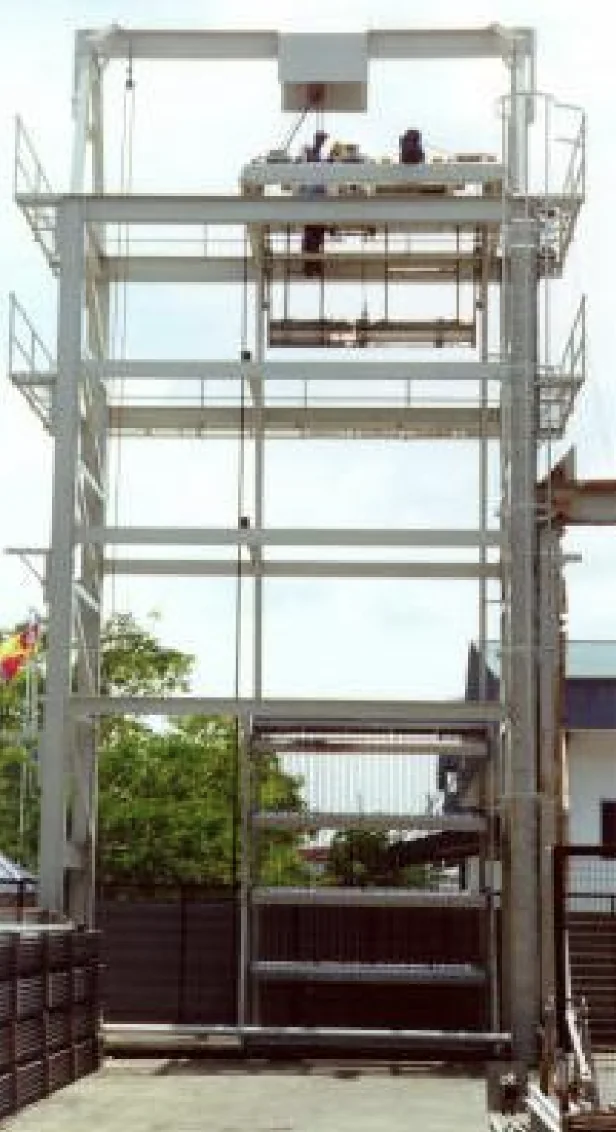

Type T wire-rope front-rake
Wire-rope operated front raking for wide, deep intakes.

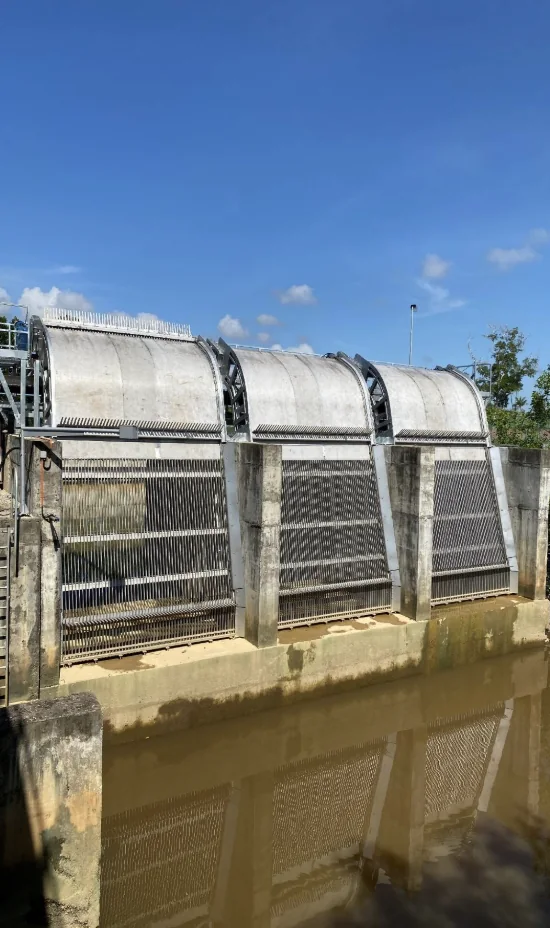

Trash-rake screen
Heavy-duty raking of large debris at river and pumping-station intakes.

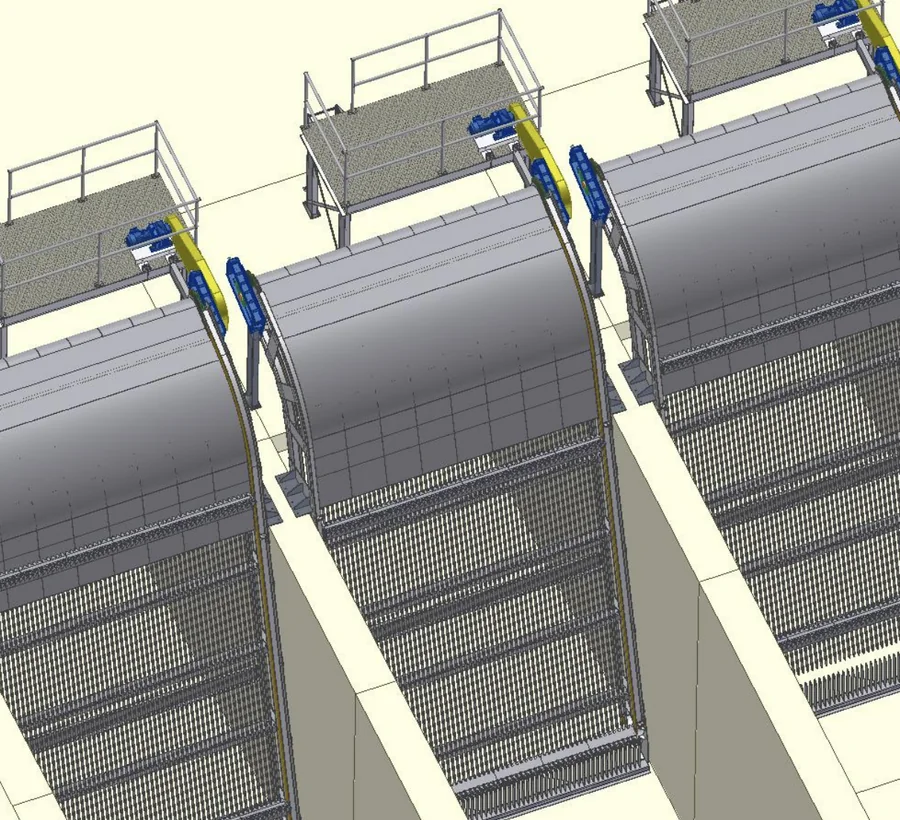

Rotary rake screen
Rotating rake assembly for compact, continuous screening.
Tool · BRB screen finder
Which back-rake belt screen fits your channel?
Recommended model
BRB-1000Standard range: channel depth 1,000–2,000 mm · bar height 1,000–2,000 mm · slot 12–25 mm · 90° inclination.
BRB-600BRB-800BRB-1000BRB-1200BRB-1400BRB-1500BRB-1600BRB-1800BRB-2000
Source: Sam McCoy Back Rake Belt Screens BRB series datasheet. Final selection depends on flow, debris load and site survey.
04 · Shaftless screw conveyors
Efficient, reliable, customised material handling.
The leading way to transport difficult materials — wet pulp, fibrous or sticky substances. Fully enclosed for clean, odourless, silent transport; no shaft and no intermediate bearings to clog.
- Stainless 304 or 316 troughsWear liners in UHMW-PE, polyurethane or hardened steel bars.
- Cold-formed spiralsSpecialty or stainless steel; inner spirals for longer, heavier duty.
- Up to 20 m per unitPush or pull drives depending on the material.
- OptionsKnife-gate discharges, radial carriages, overload & motion sensors.
Tool · capacity calculator
Size a shaftless conveyor
Material
Max recommended capacity
18 m³/hAbove 20° a double spiral is recommended.
Capacities from the Sam McCoy shaftless conveyor datasheet (32 rpm, typical dewatered municipal sludge; screenings at 12 rpm ≈ 20%). Values between listed angles are interpolated.
Capacity table (m³/h by inclination)
| Spiral | 0° | 10° | 20° | 30° |
|---|---|---|---|---|
| SC 190 | 2.8 | 2.5 | 2.1 | 1.2 |
| SC 285 | 10 | 9 | 7.5 | 4.5 |
| SC 360 | 20 | 18 | 15 | 8.5 |
| SC 480 | 40 | 36 | 30 | 19 |
| SC 580 | 80 | 72 | 60 | 38 |
Trough dimensions (mm)
| Spiral | A | a | H | h |
|---|---|---|---|---|
| SC 190 | 290 | 230 | 270 | 155 |
| SC 285 | 382 | 320 | 365 | 205 |
| SC 360 | 476 | 406 | 460 | 255 |
| SC 480 | 649 | 539 | 603 | 333 |
| SC 580 | 753 | 643 | 725 | 403 |
05 · Sludge dewatering
Take the water back out.
Any shaftless conveyor can carry a dewatering zone — a fine wedge-wire screen with a flushing system — to remove liquid and dissolved organics from wet or sticky material. Depending on the application, volume falls by up to 75%.
- Weighted, hinged outlet gateEffective discharge without odour problems.
- Double spiral as standardMore axial strength and capacity.
- Insulation and bagging optionsHygienic disposal straight into sealed sacks.
- Pairs with fine screensRecovery of organics and drying of screenings.
SCD dimensions
| Type | L-SCD (mm) | W-SCD (mm) | Drain (in) | Spiral end (mm) |
|---|---|---|---|---|
| SCD 190 | 609 | 342 | 3 | 300 |
| SCD 285 | 609 | 430 | 3 | 300 |
| SCD 360 | 609 | 508 | 3 | 300 |
| SCD 480 | 1008 | 630 | 4 | 500 |
| SCD 580 | 1008 | 740 | 4 | 500 |
06 · Agitators & mixers
Precision mixing for process lines.
Industrial agitators and mixers for chemical and food processing — designed in-house by our engineers and built in our own fabrication shop to suit the vessel, the product and the duty.
Describe your vessel
07 · Palm oil mill
Engineering for the mill.
Palm oil has been one of our core industries for decades, alongside water and wastewater. Tell us about your mill and we'll propose the right equipment — from conveyors built for wet, fibrous material to screening and dewatering.
Talk to our palm oil team
08 · After-market service
From the people who built it.
- Scheduled maintenancePlanned inspections that catch wear before it stops a plant.
- Spare parts & upgradesBladders, liners, spirals, rakes, drives and controls.
- Rapid-response supportEngineers who know the machine on the phone and on site.
- TrainingWe share the latest innovations through training and joint sessions.
Next project
Have a river to hold, or a plant to upgrade?
Tell us the site, the flow and the problem. Our engineers will come back with an assessment and a way forward.
